Description
-
Specifications
- Input Sensitivity : 6V - 0.2V
- 12000 x 1 @ 2 ohms RMS Linked
- 6000 x 1 @ 1 ohms RMS Mono
- 3000 x 1 @ 2 ohms RMS Mono
- 1500 x 1 @ 4 ohms RMS Mono

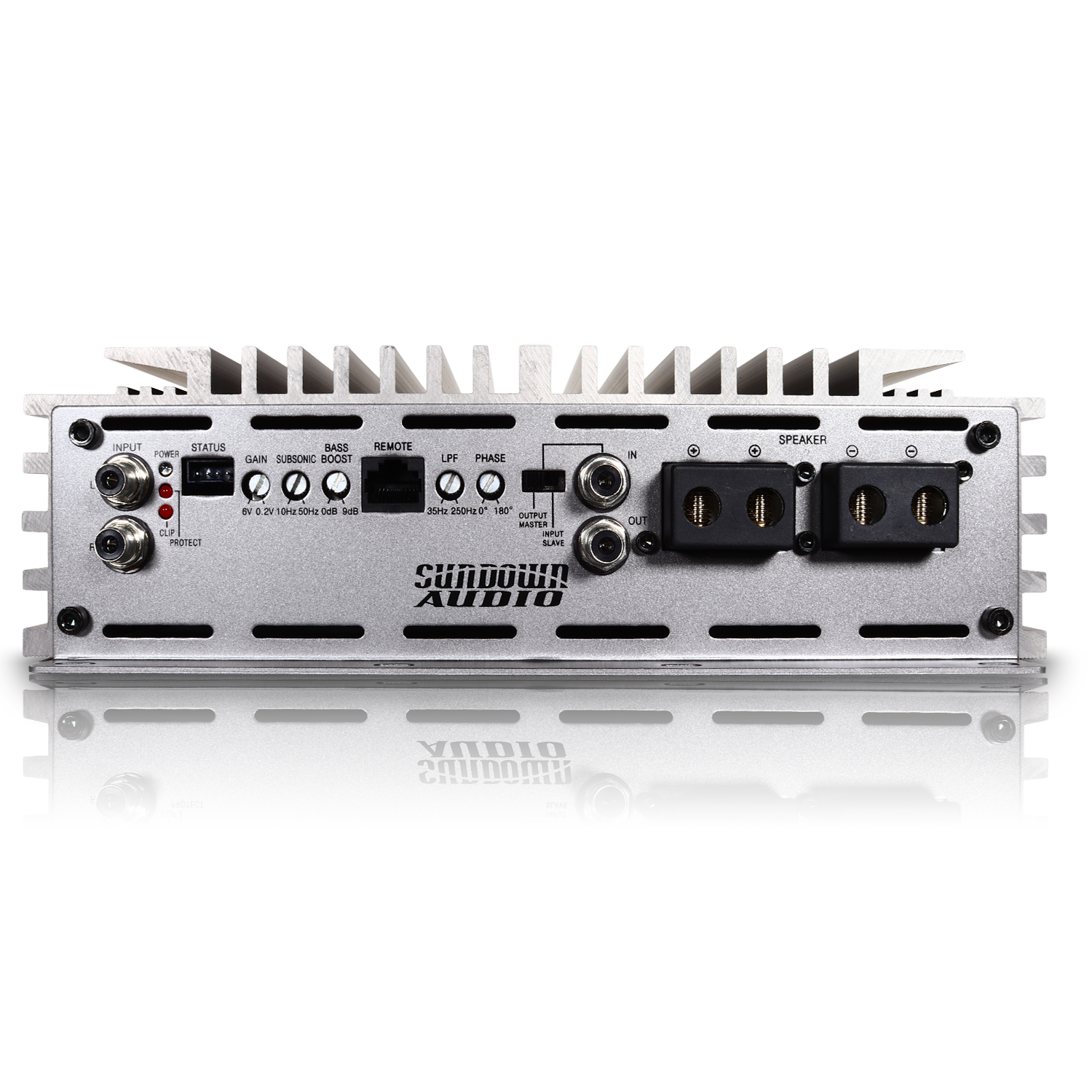

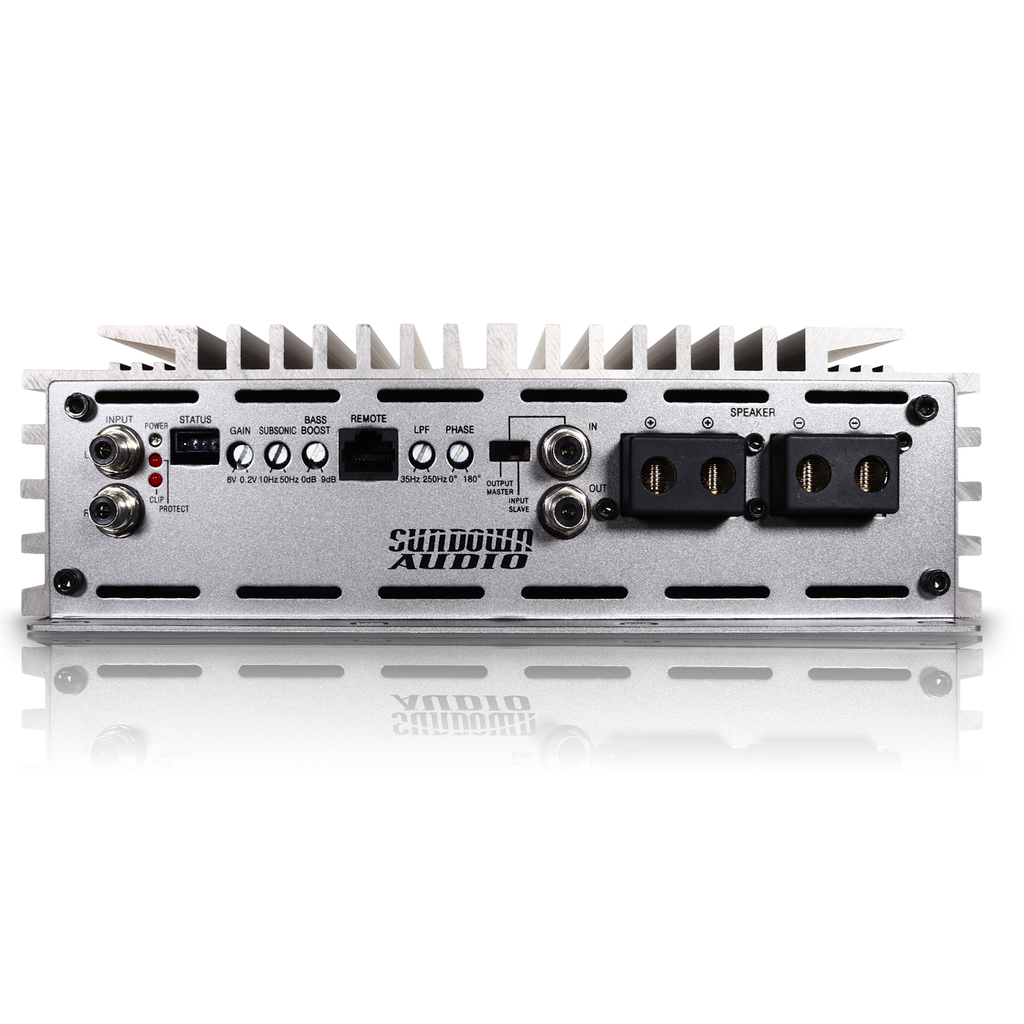

- Variable Subsonic Crossover Filter : 10HZ - 50HZ
- Variable Low Pass Filter : 35HZ - 250HZ
- Bass Boost @ 45Hz 0-9dB
- Efficiency : 90% <
- Signal / Noise Ratio : 90DB <
- Damping Factor : 400 <
- Frequency Response : 10 Hz – 250 HZ
- Phase Shift Control 0-180 Degrees
- Tested Voltage & THD : 12.8V & Less Than 1% THD

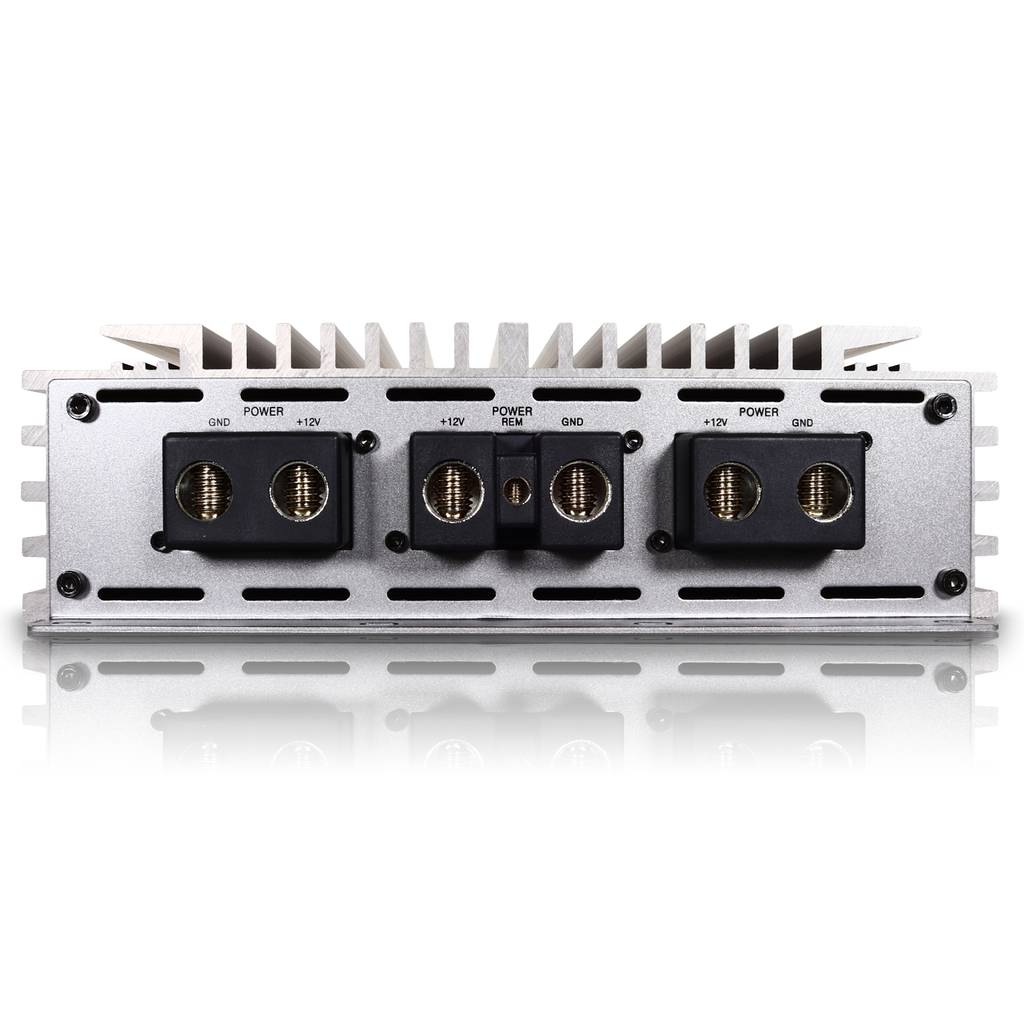

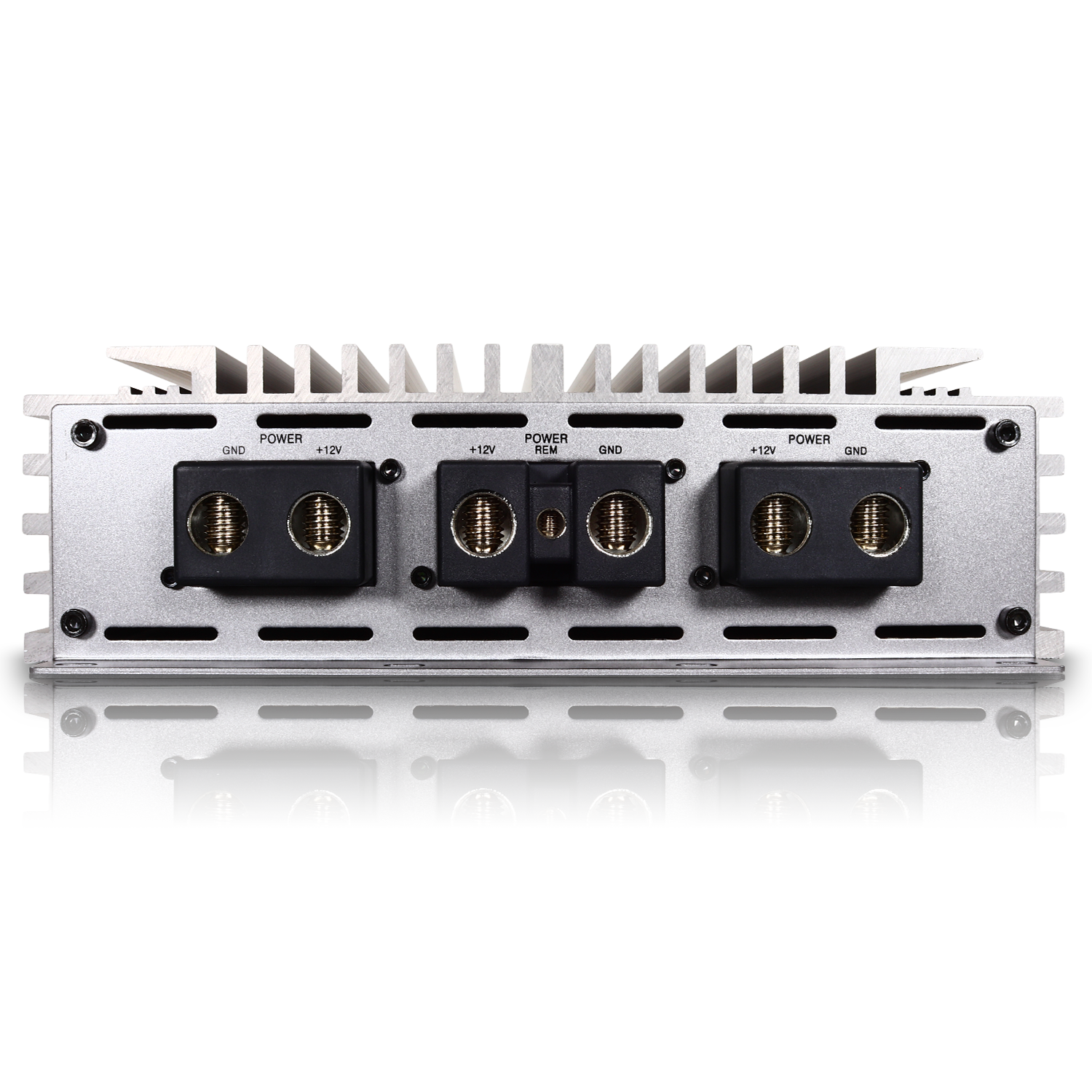

- Operation Voltage : DC 9V - 15.5V Power Input
- Recommended Fuse : 600 Amps
- Dimensions : 26.78” L x 10.08” W x 2.96” H
