Description
-
Features
- Full Range Digital 4 Channel Amplifier

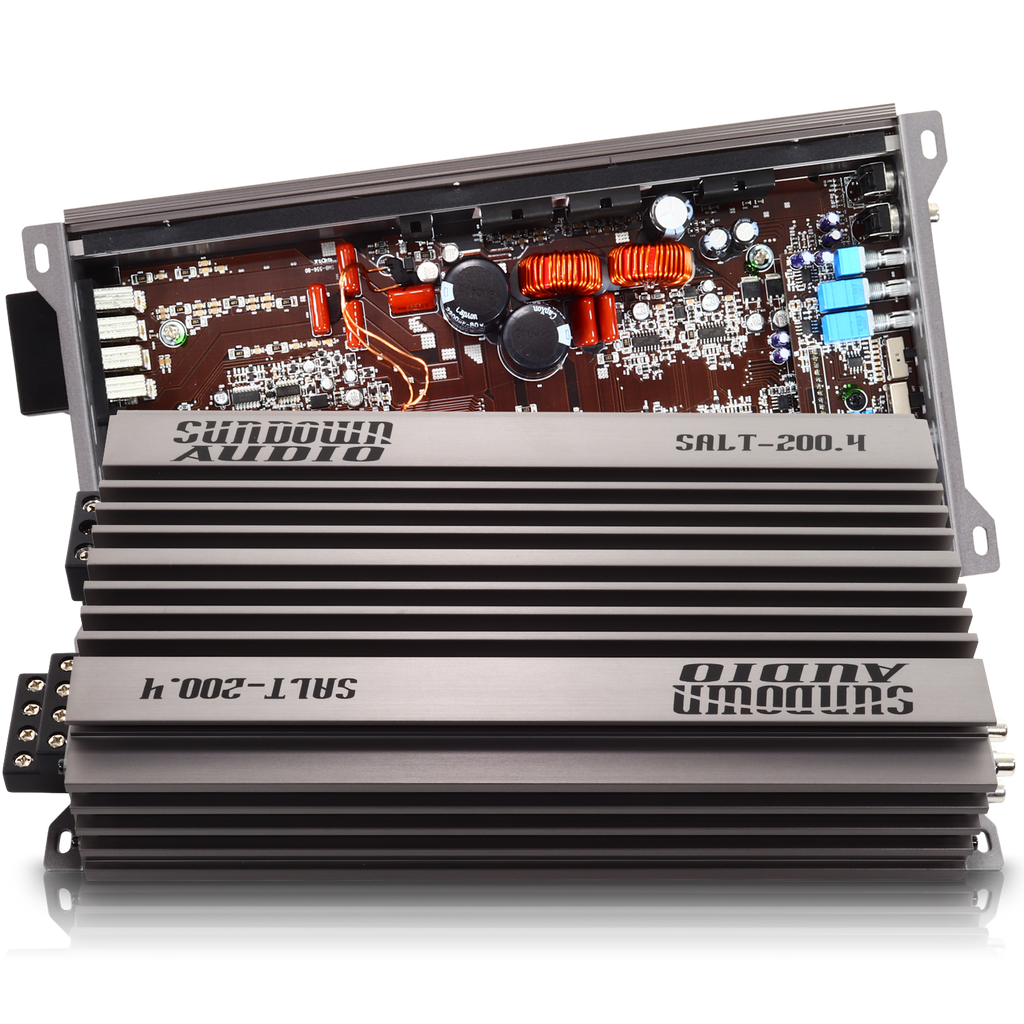

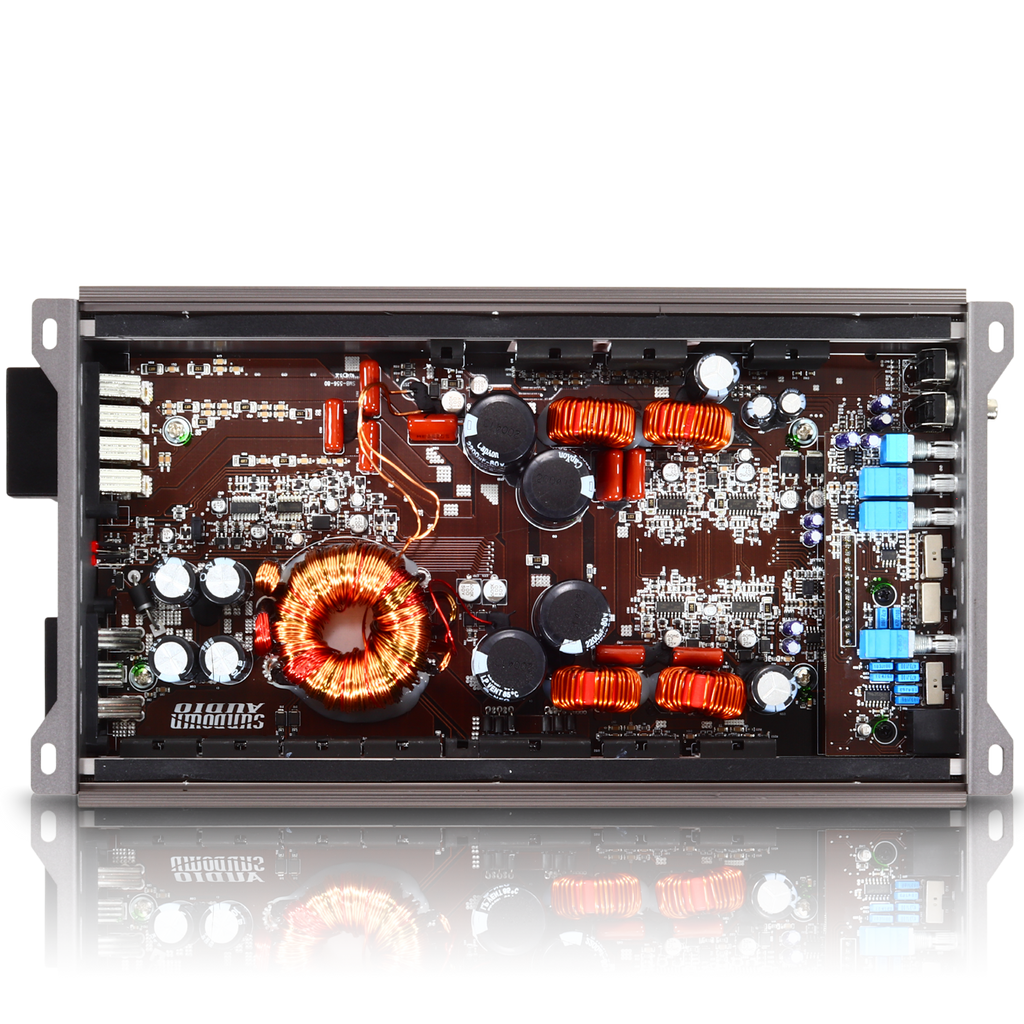

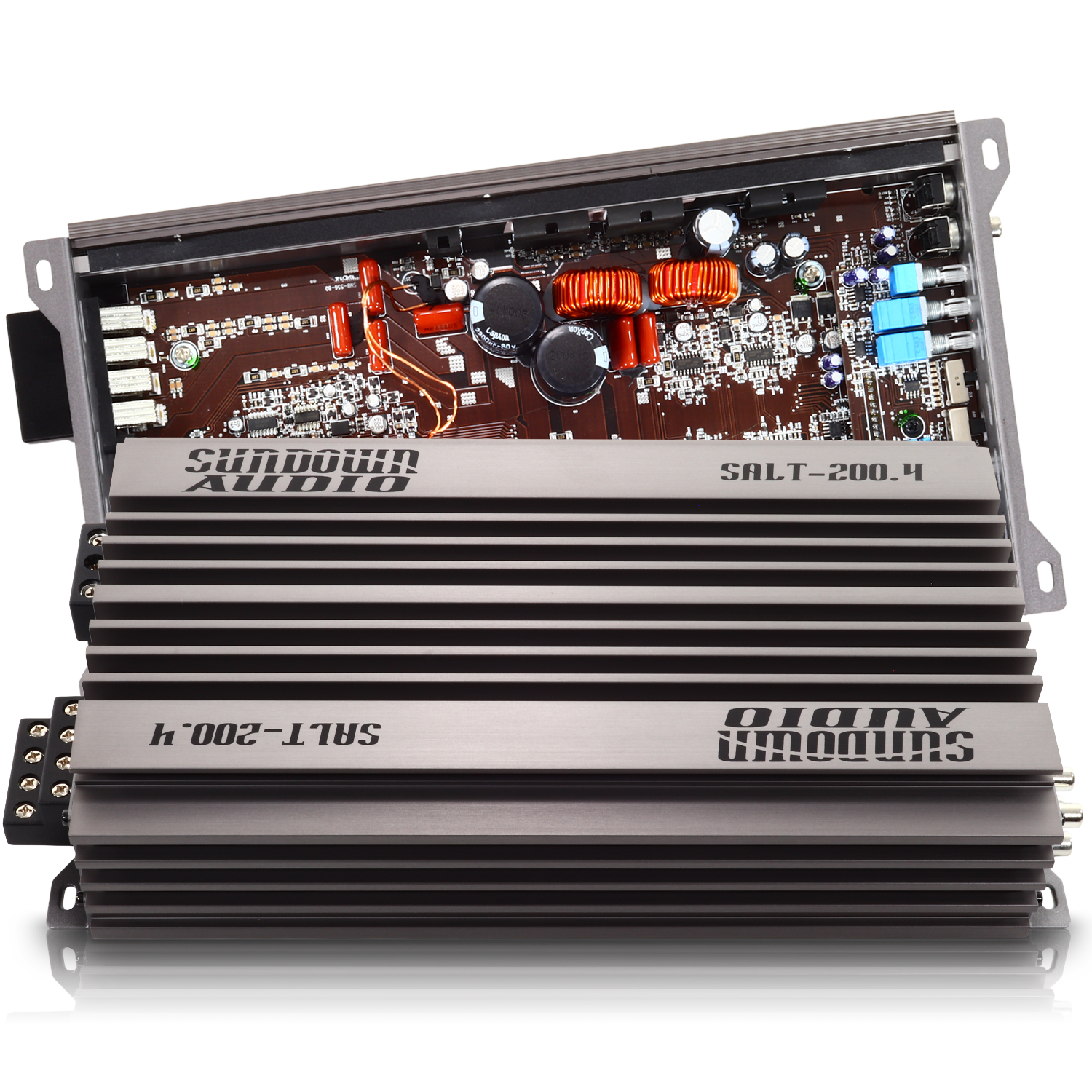

- Double Sided Through Hole Epoxy PCB
- Multi-Way Protection Circuitry ( Thermal / Voltage / Speaker Short / DC Offset )
- Voltage, Temperature, and Clipping Display Wired Remote Control (Optional / Not Included with Multi-Channels)

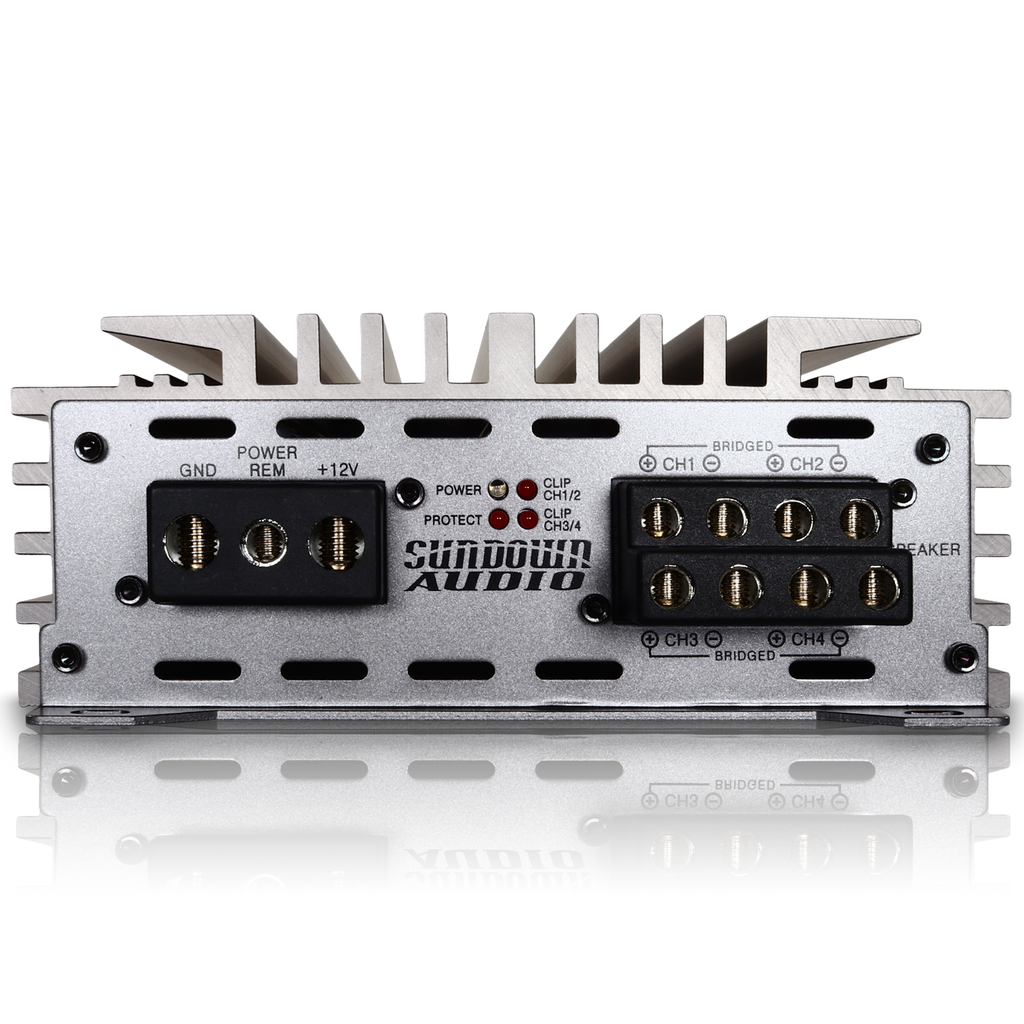

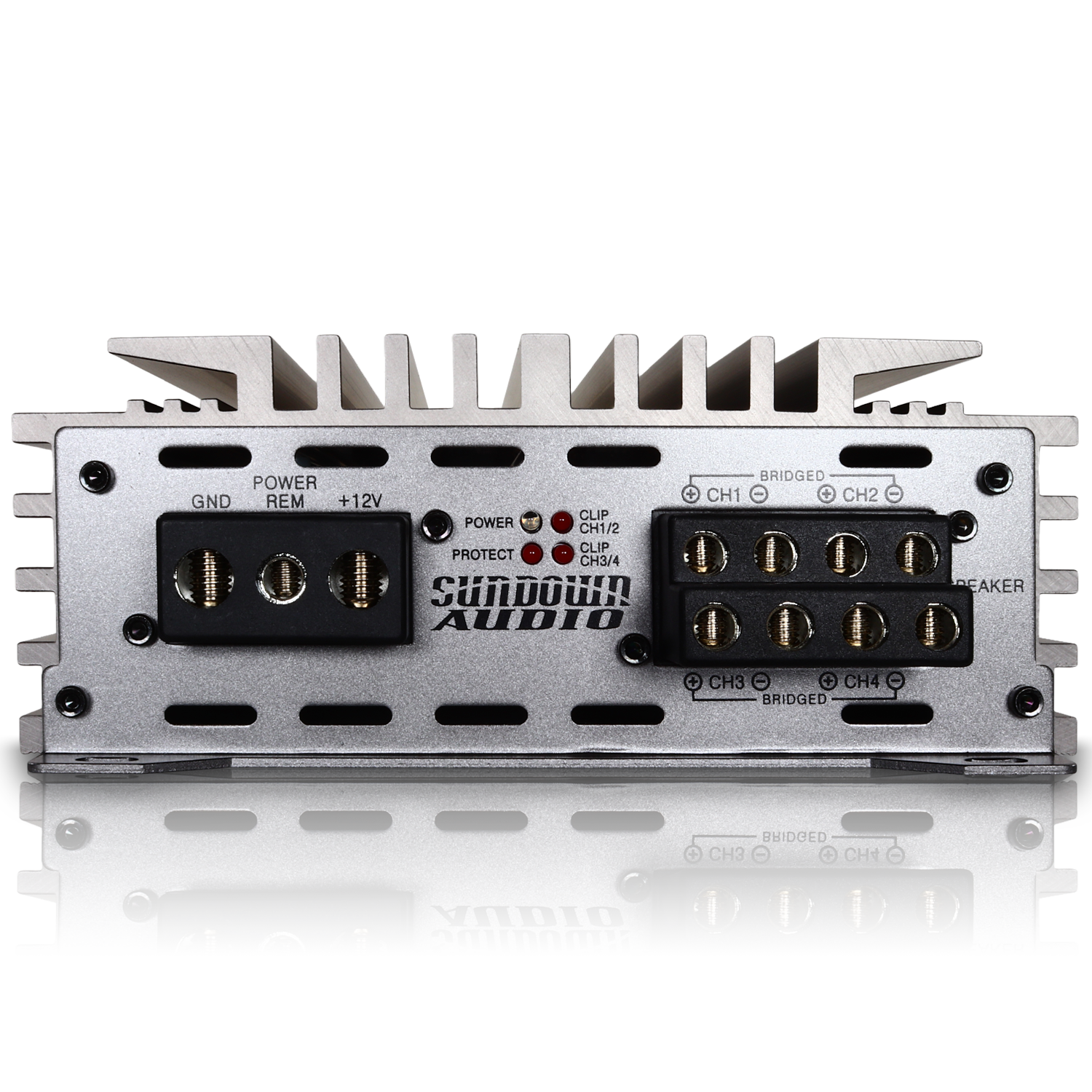

- Clipping indicator on amplifier side-panel
- Optimized for standard 12v charging systems (Low Voltage Technology)
-
Specifications
- Input Sensitivity : 6V - 0.2V
- 700 x 2 @ 4 ohms RMS
- 325 x 4 @ 2 ohms RMS
- 200 x 4 @ 4 ohms RMS
- 2 OHM Stereo Stable / 4 OHM Bridged Stable

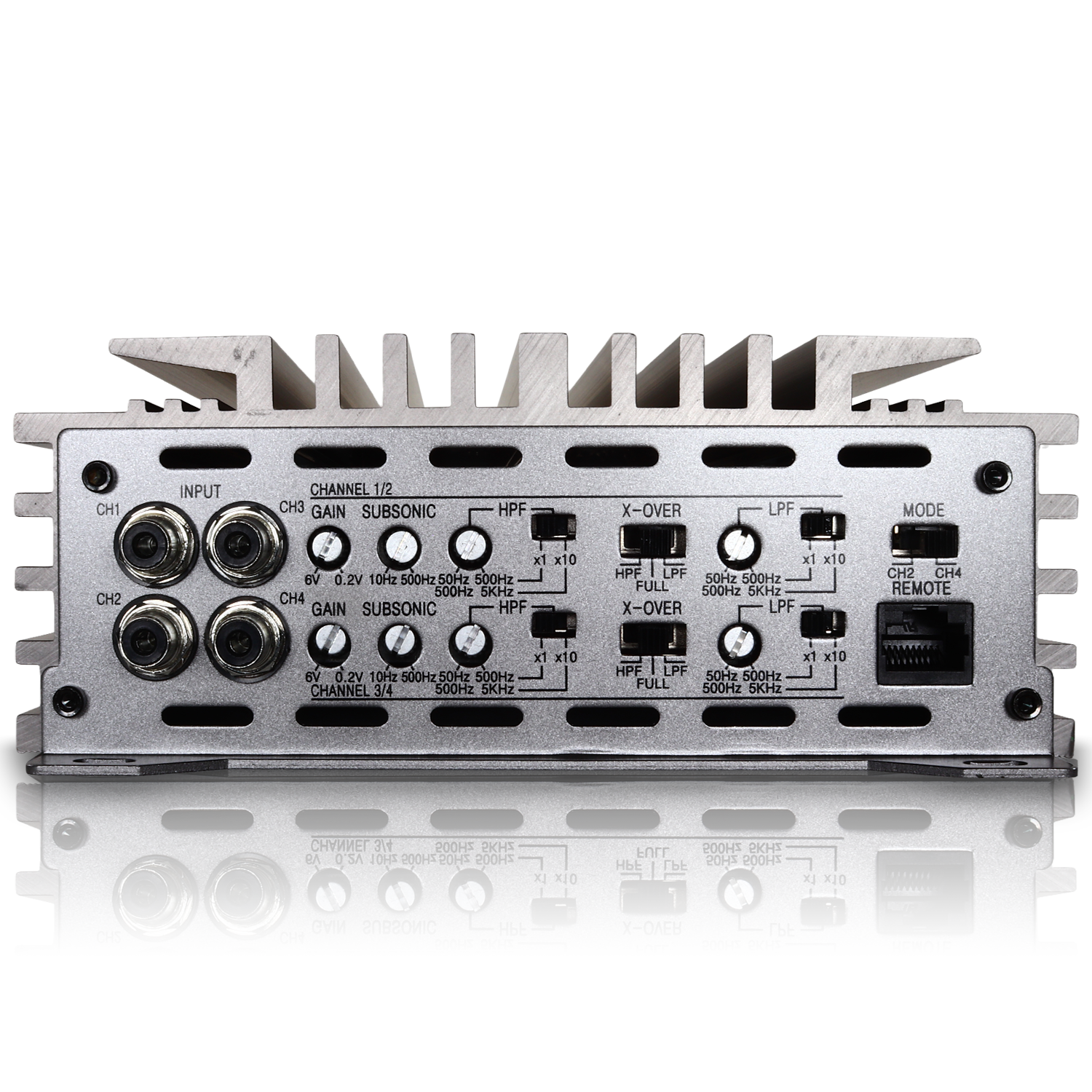

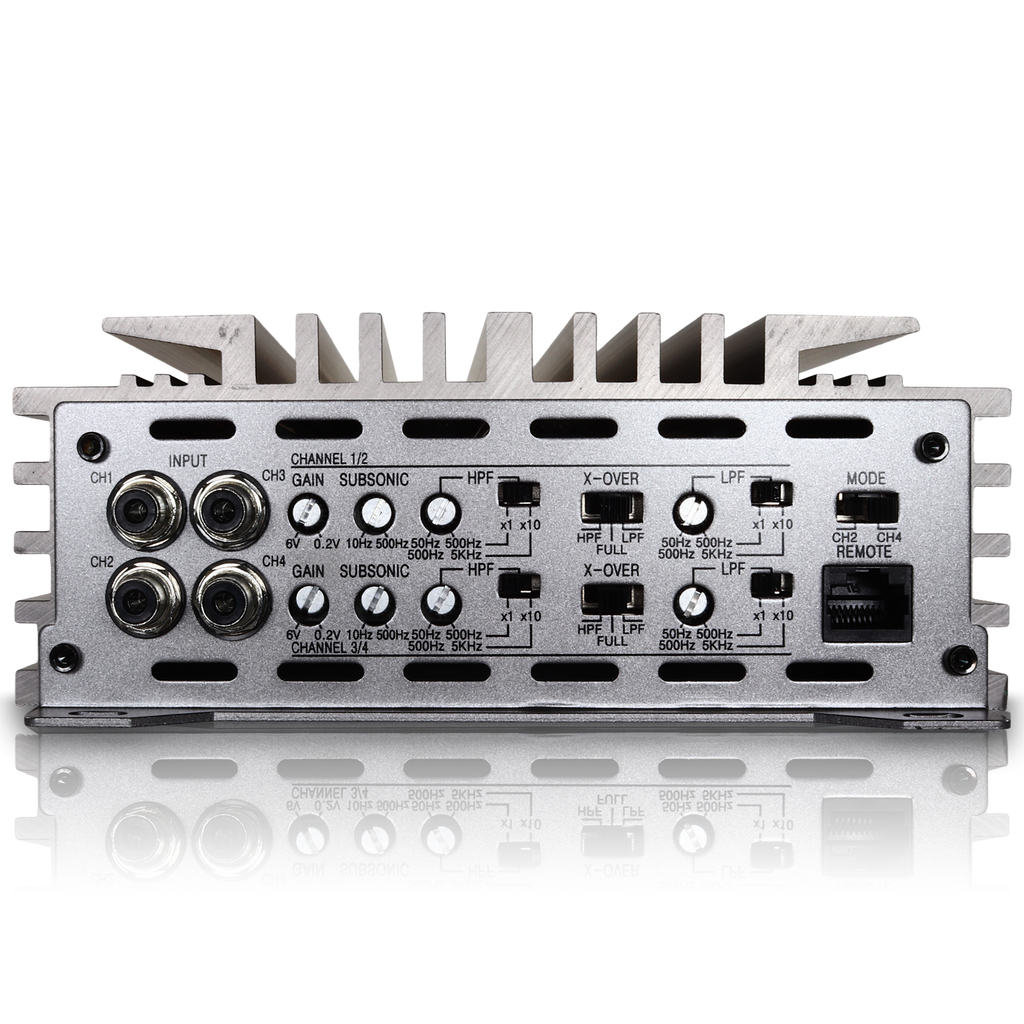

- Variable Subsonic Crossover Filter : 10HZ - 500HZ
- Variable High Pass Filter : 50HZ - 500HZ ( 500HZ - 5KHZ at x10 )
- Variable Low Pass Filter : 50HZ - 500HZ ( 500Hz - 5KHZ at x10 )
- X1, X10 Crossover Multiply
- Efficiency : 75% 4OHM, at 100HZ
- Signal / Noise Ratio : 105DB <
- Damping Factor : 400 <
- Frequency Response : 10 Hz – 25khz
- 12DB/ OCT Variable Crossover Slope (HPF/LPF)
- 12DB/ OCT Variable Subsonic Crossover Slope
- Tested Voltage & THD : 12.8V & Less Than 1% THD
- Operation Voltage : DC 9V - 15.5V Power Input
- Recommended Fuse : 120 Amps
- Dimensions : 11.82” L x 6.85” W x 2.66” H
