Description
FEATURES

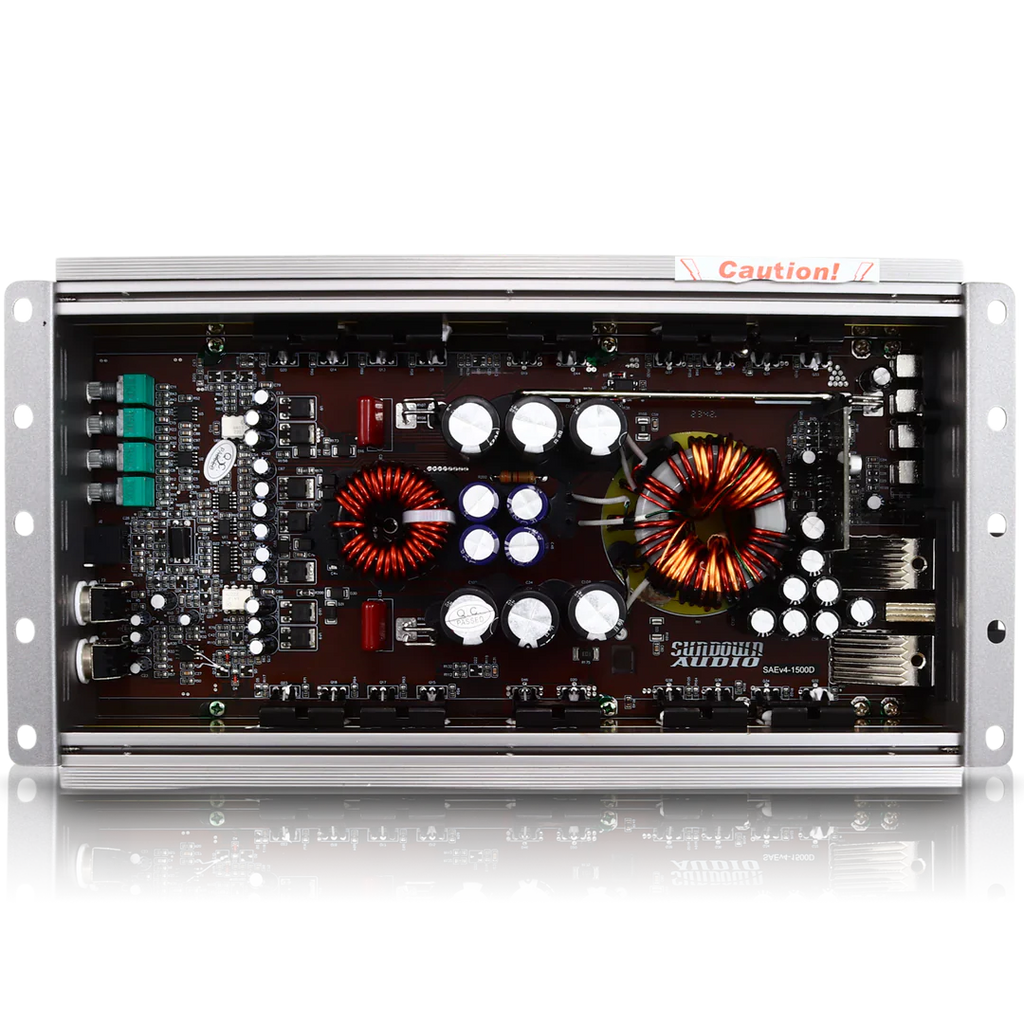

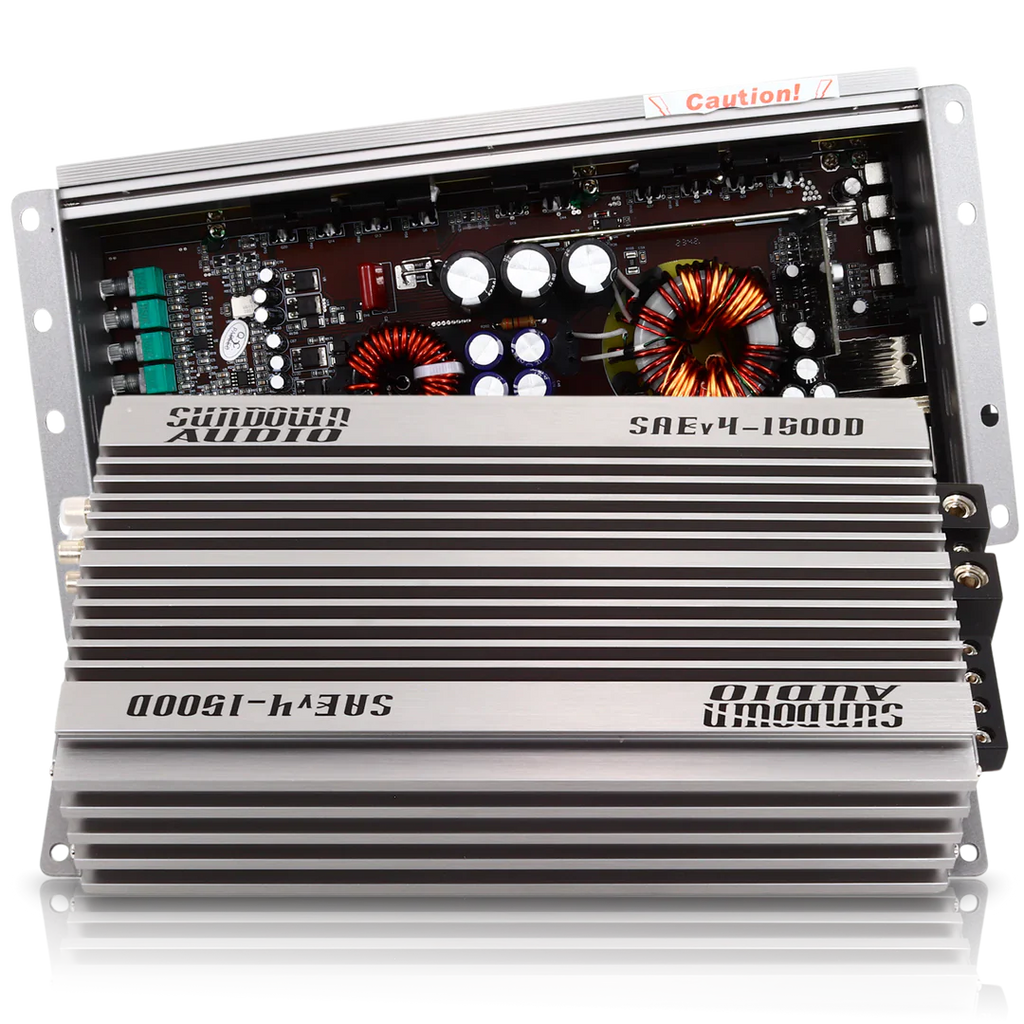

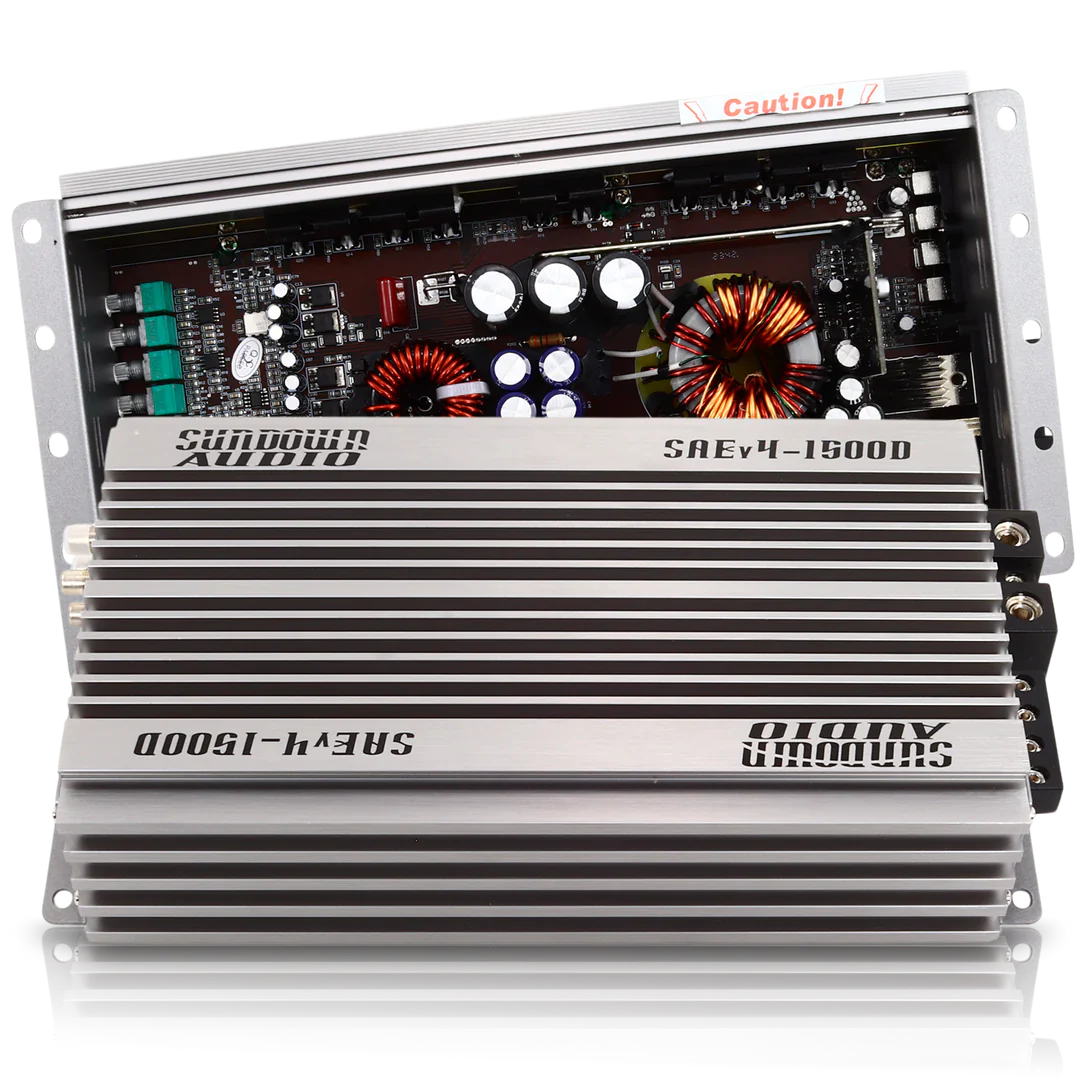

- Digital Class-D Mono Block Amplifier
- Dual MOS-FET PWM Power Supply
- 1 Ohm Stable Load
- 12 dB/Octave - Variable Low Pass Filter
- 12 dB/Octave - Variable Subsonic Filter
- 4 Way Protection Circuit (Thermal, Voltage Speaker short and DC Offset)
- Wired Remote Control
SPECIFICATIONS
- Input Sensitivity 6V Max
- 1500 x 1 @ 1 ohms RMS
- 800 x 1 @ 2 ohms RMS
- 450 x 1 @ 4 ohms RMS
- 1 OHM Stable

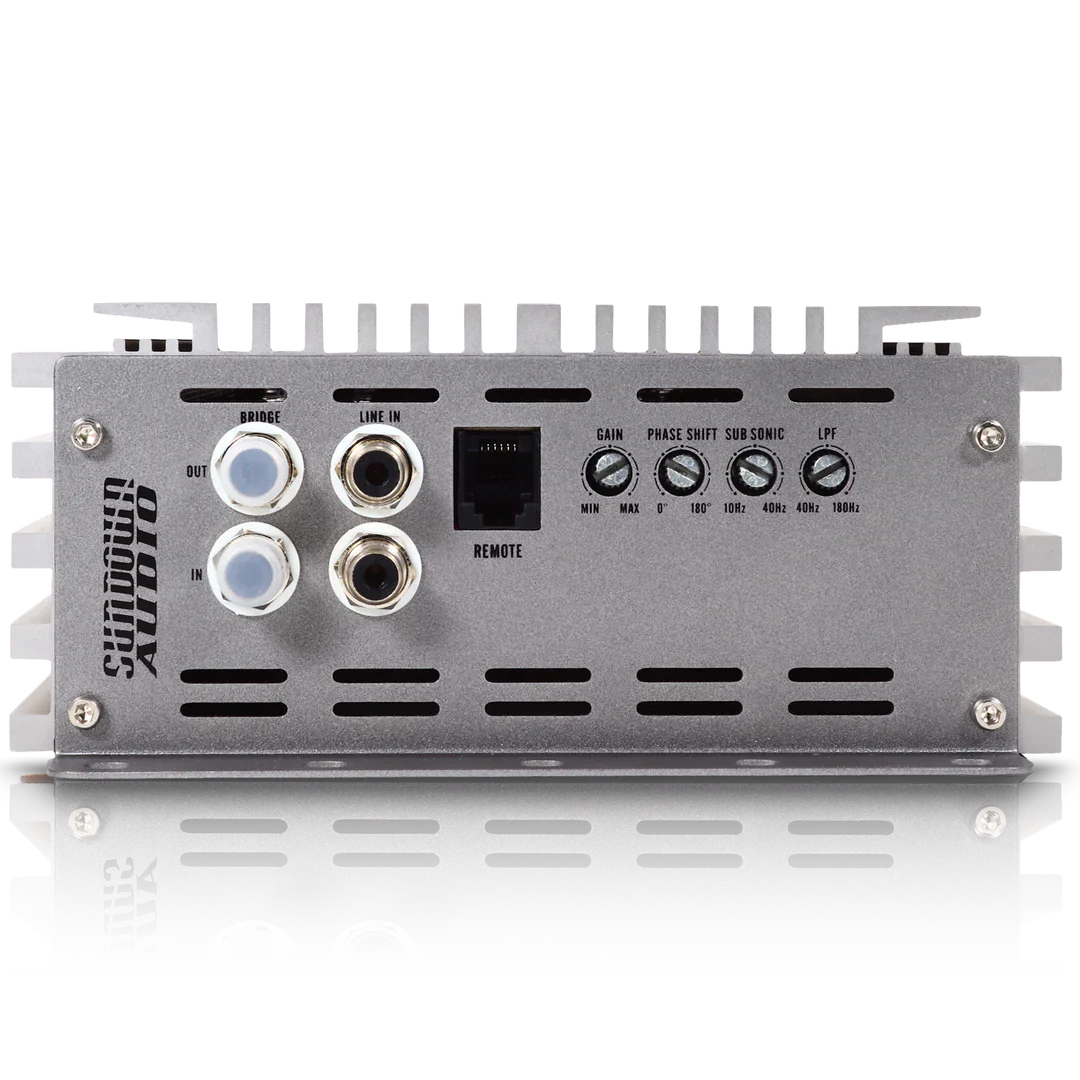

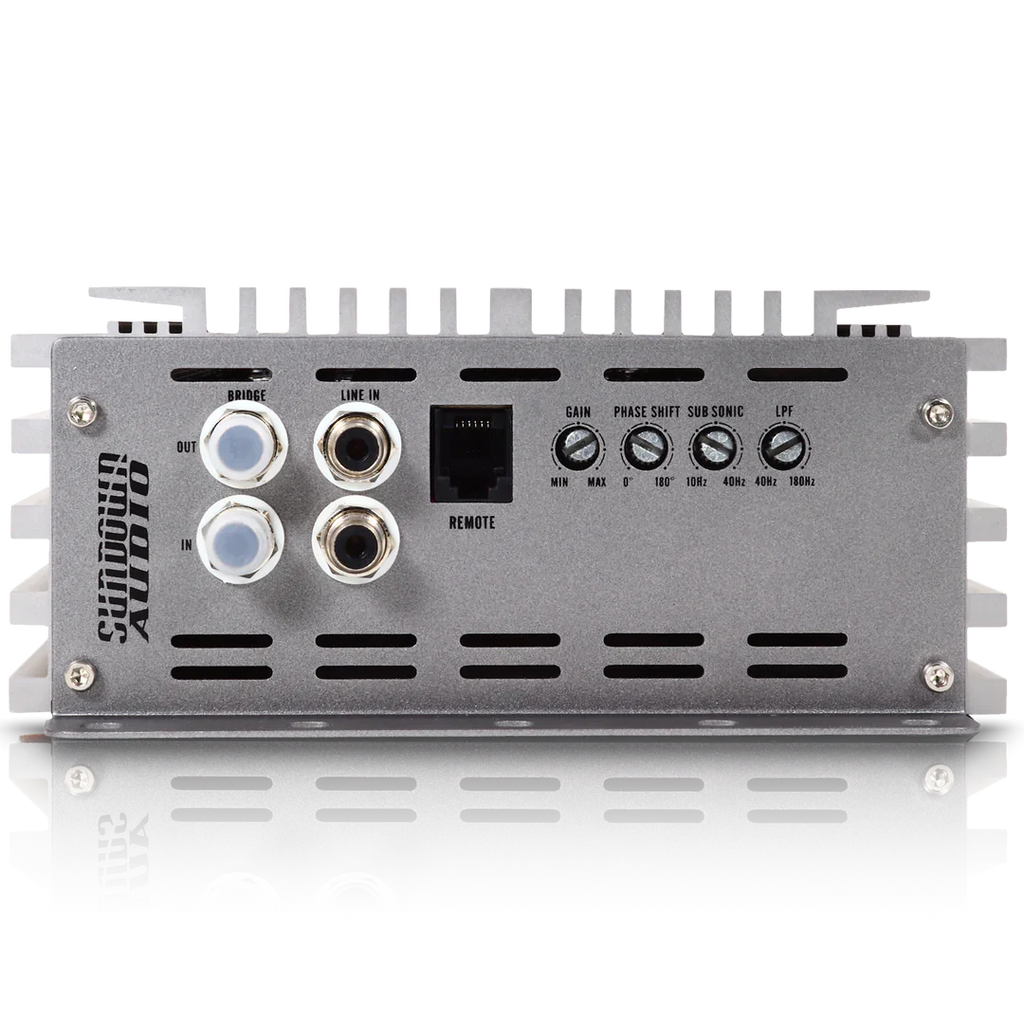

- Variable Low Pass Filter : 40HZ - 180HZ
- -12dB/8 Variable Crossover Slope (LPF)
- Signal / Noise Ratio : 92DB

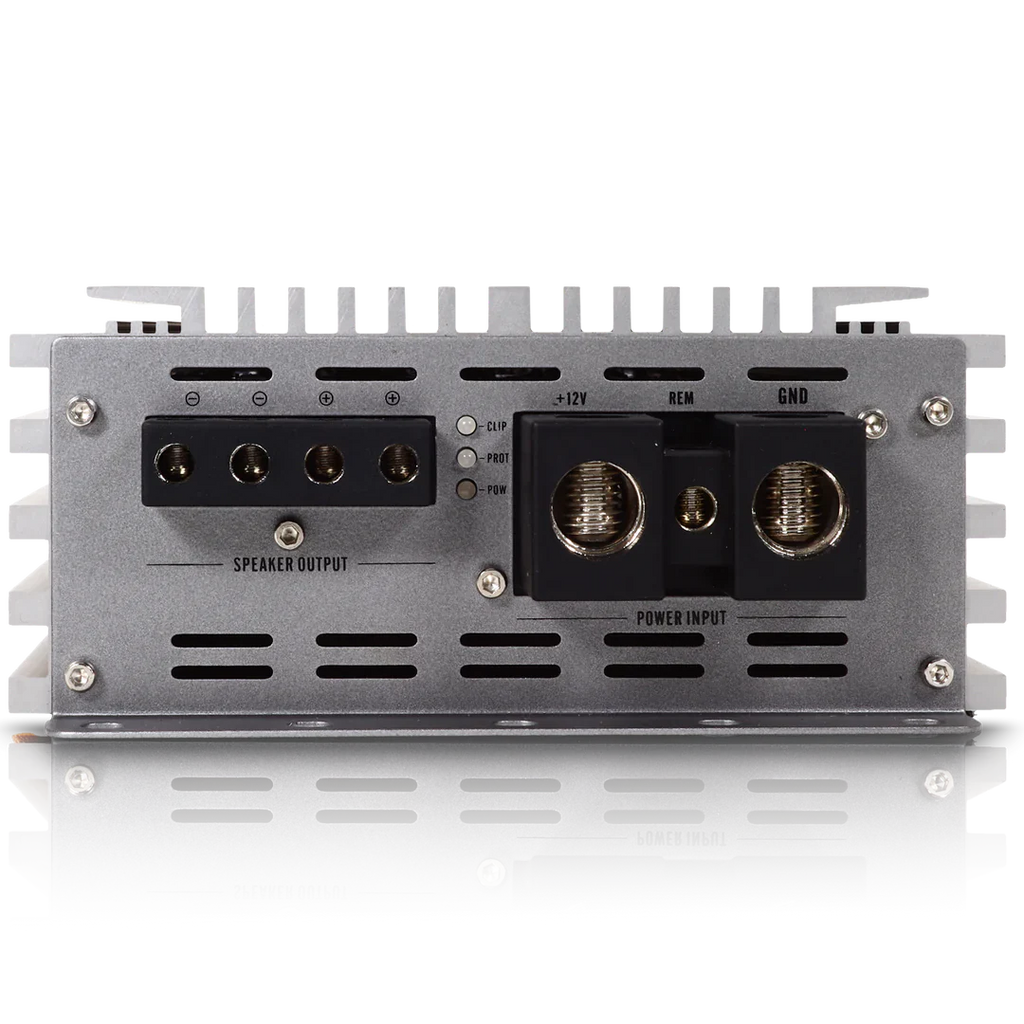

- Operation Voltage : DC 10.5V - 15.5V Power Input
- Recommended Fuse : 140 Amps

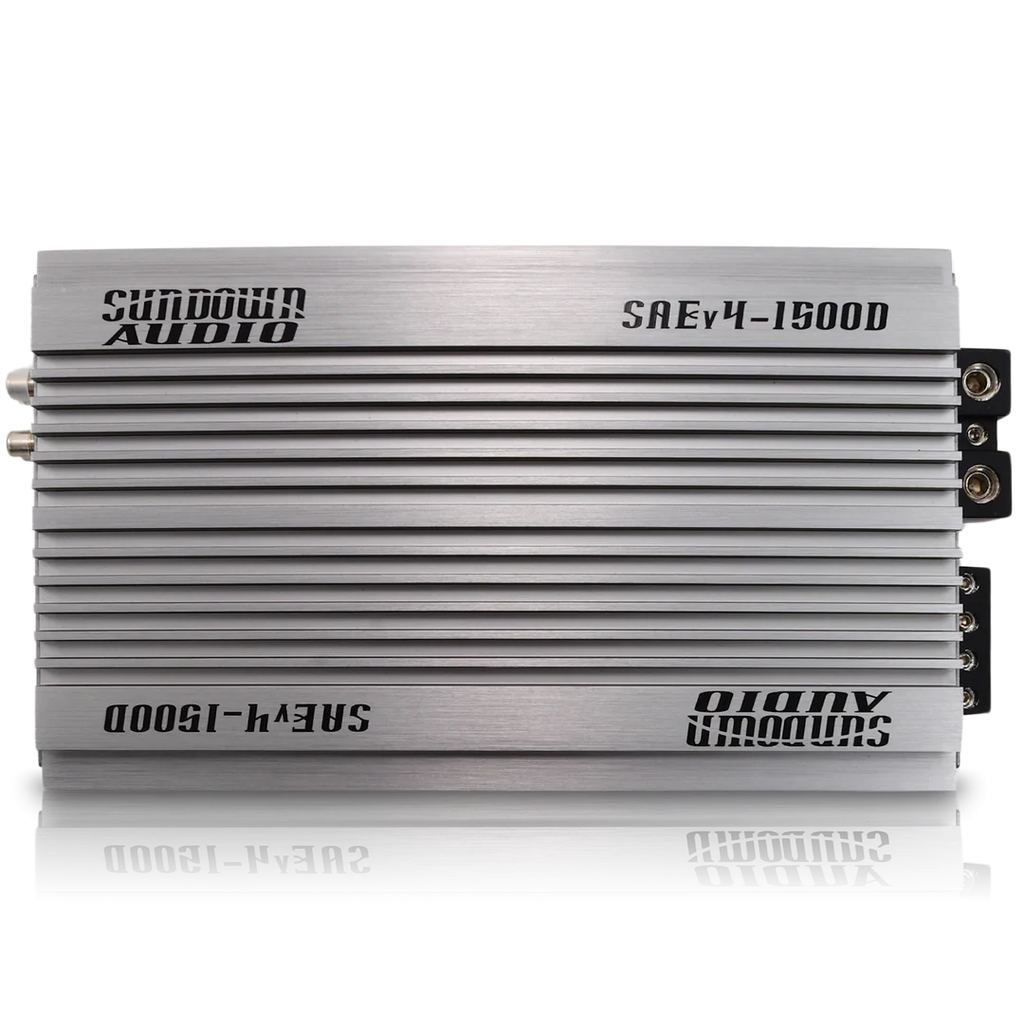

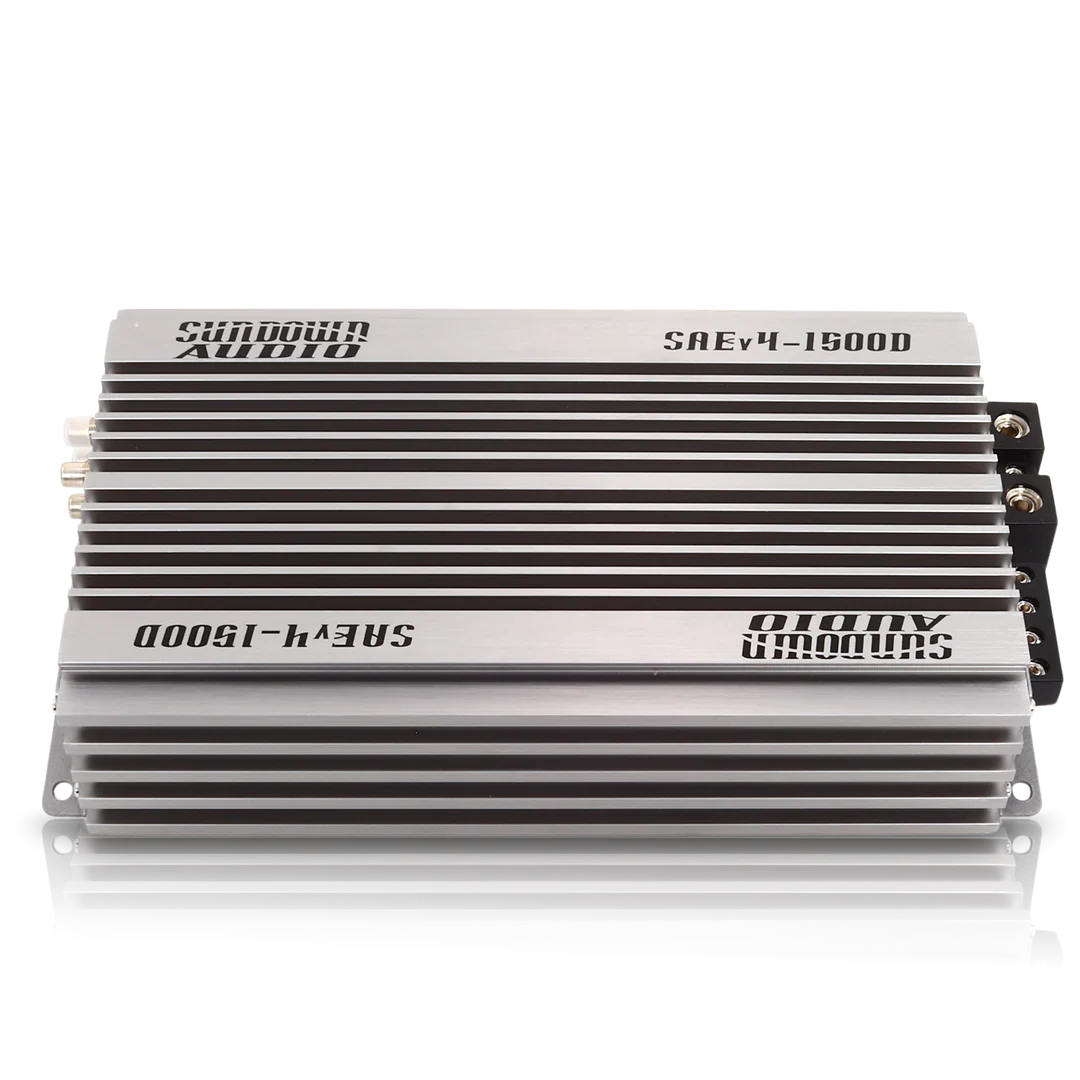

- Dimensions : 12.48” L x 6.3” W x 2.75” H
