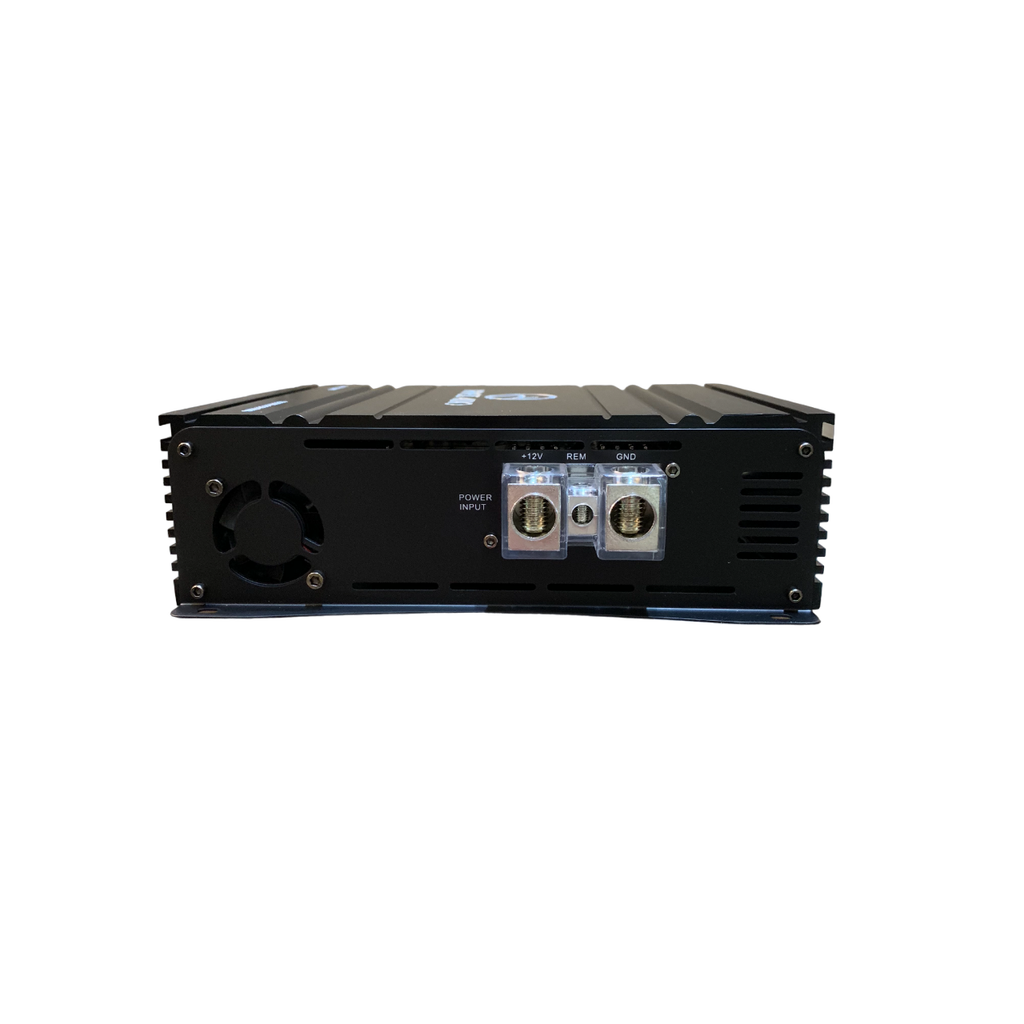

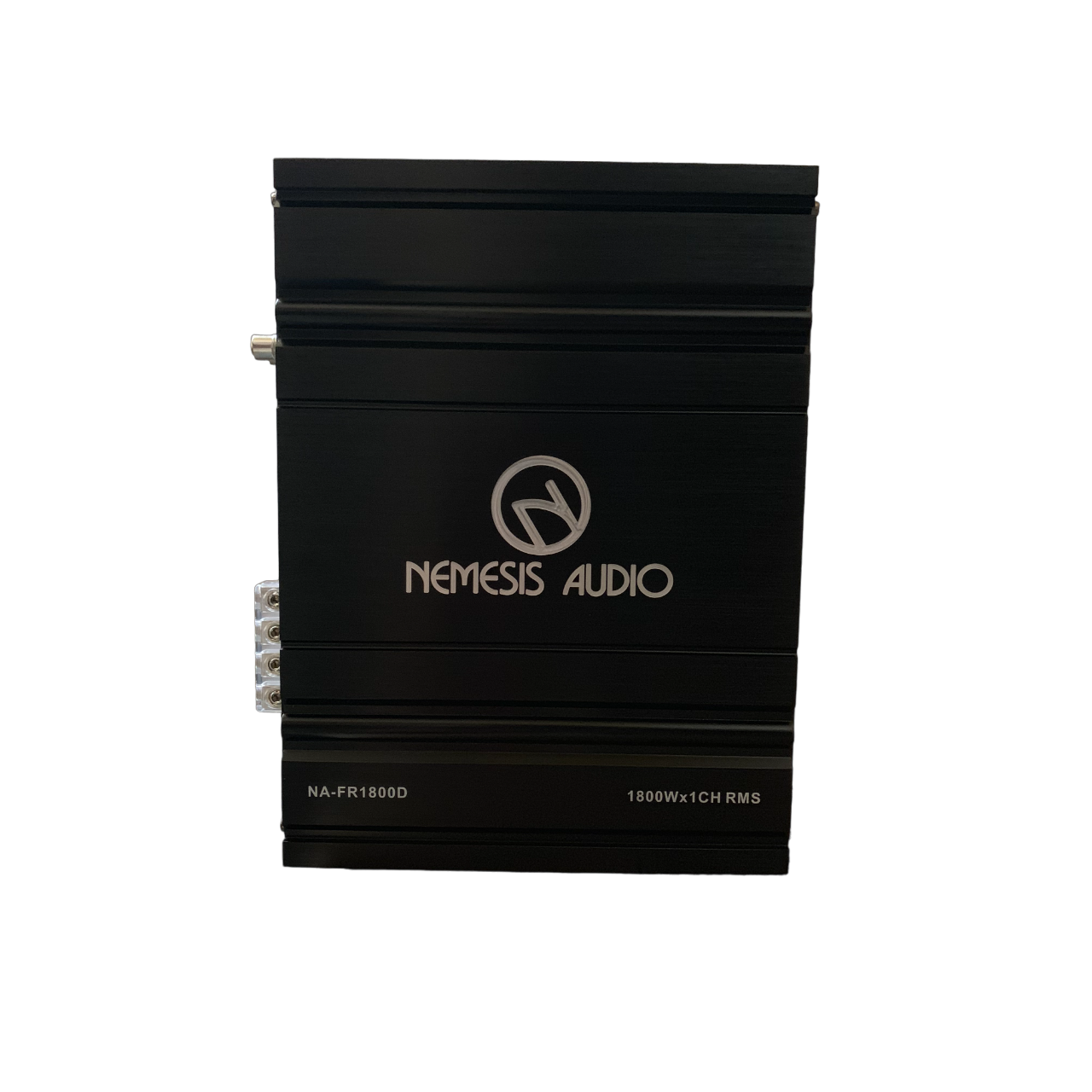

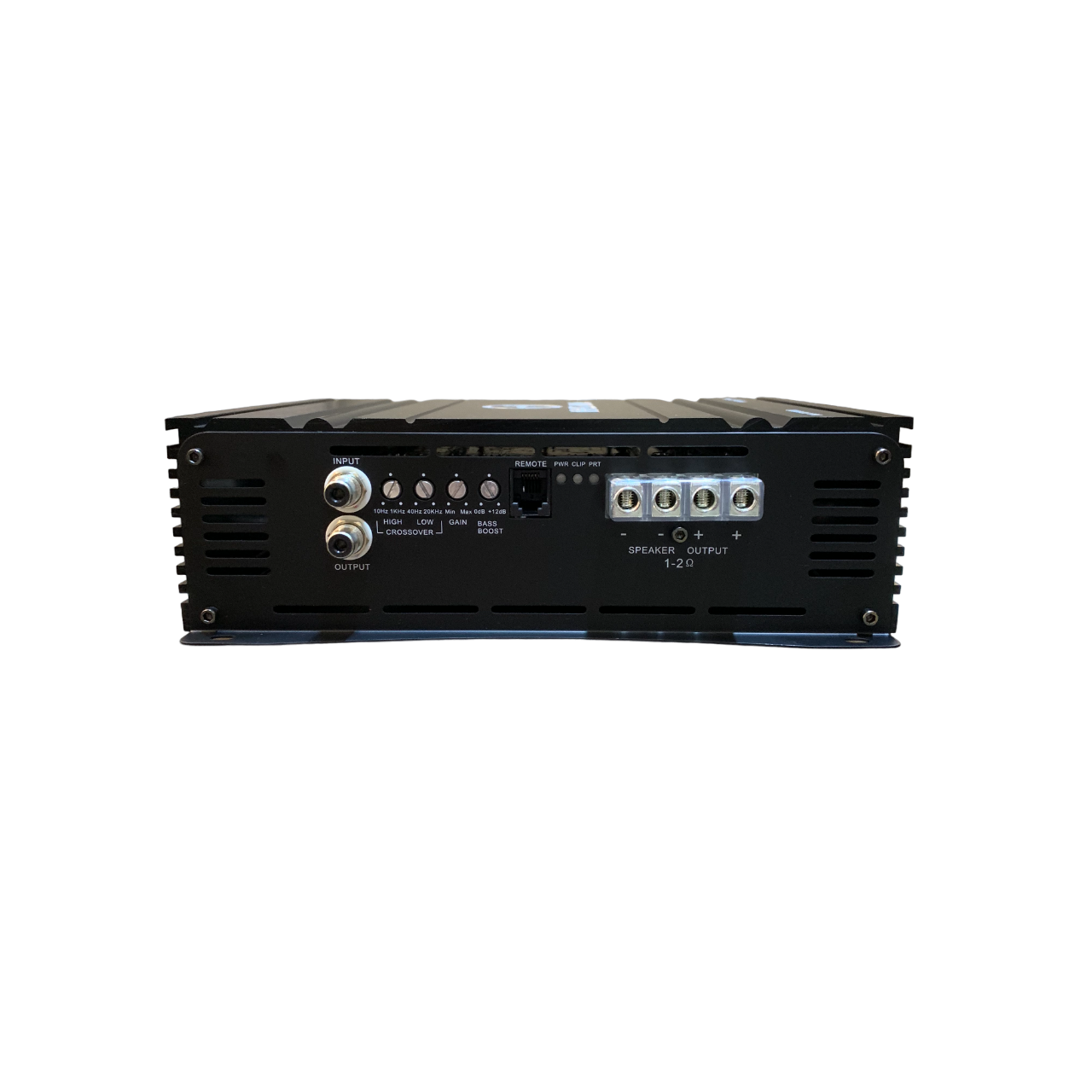

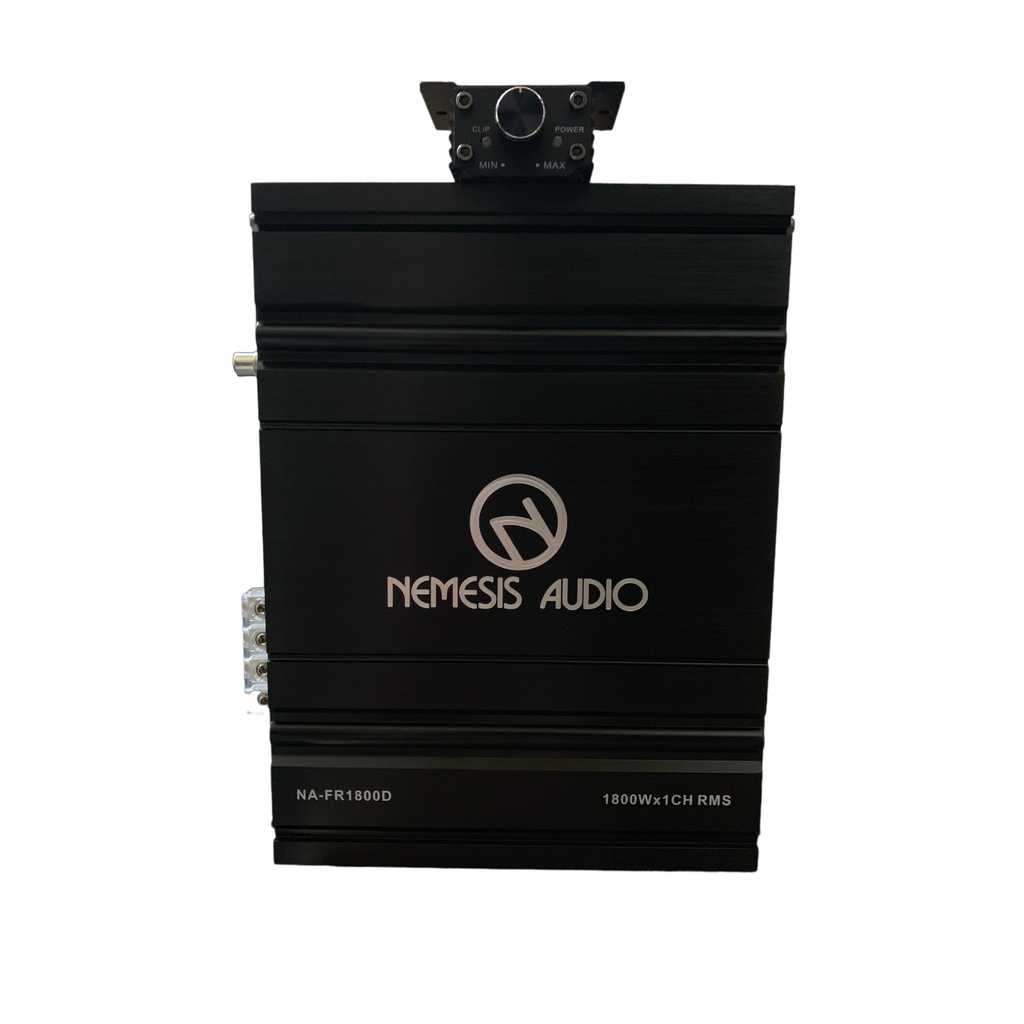

Nemesis Audio NA-FR1800D 1800W RMS Class D Monoblock Full Range Amplifier

FULL RANGE CLASS D

NA-FR1800D

• 1 Ch Full-Range Class D Amplifier

• Maximum Output Power @ 14.4V (4 OHM) 1,300W RMS
• Maximum Output Power @ 14.4V (2 OHM) 1,550W RMS
• Maximum Output Power @ 144V (1 OHM) 1,800W RMS
• INPUT SENSITIVITY: 200MV
• Signal-to-Noise Ratio: 100dB
• Frequency Response: 10Hz-20KHz (-3dB)

Crossover:

• H.P.F. (High Pass Filter) 10 to 1 KHz(-12dB/8) Variable
• L.P.F. (Low Pass Filter) 40 to 20 KHz(-12dB/8) Variable
• Bass Boost: 0-12dB (50Hz)
• Input Impedance: 56k Ohms
• Protection System: Output Short/High/Low Supply
• Voltage/Thermal Protection
• Minimum Supply Voltage: 9V
• Maximum Supply Voltage: 16V
