Description
Specifications:

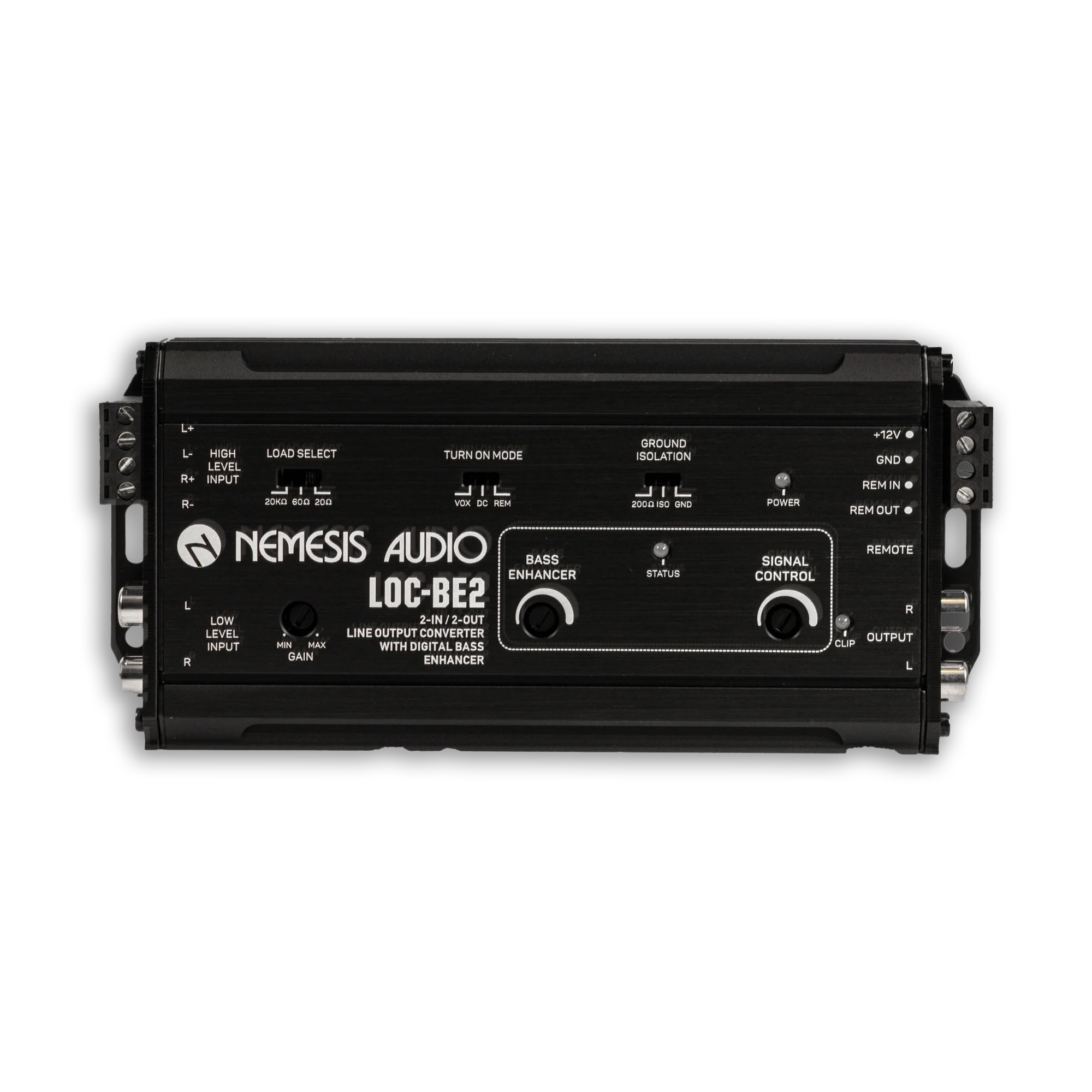

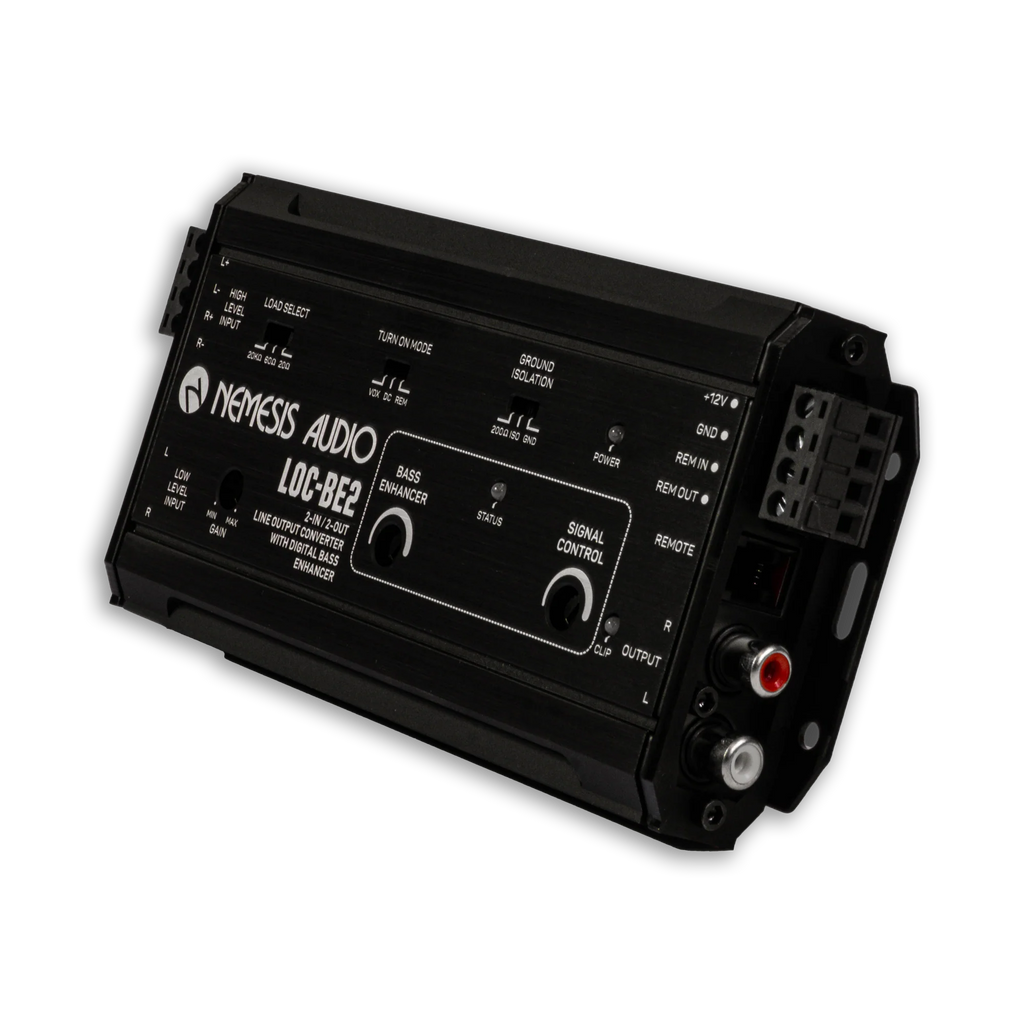

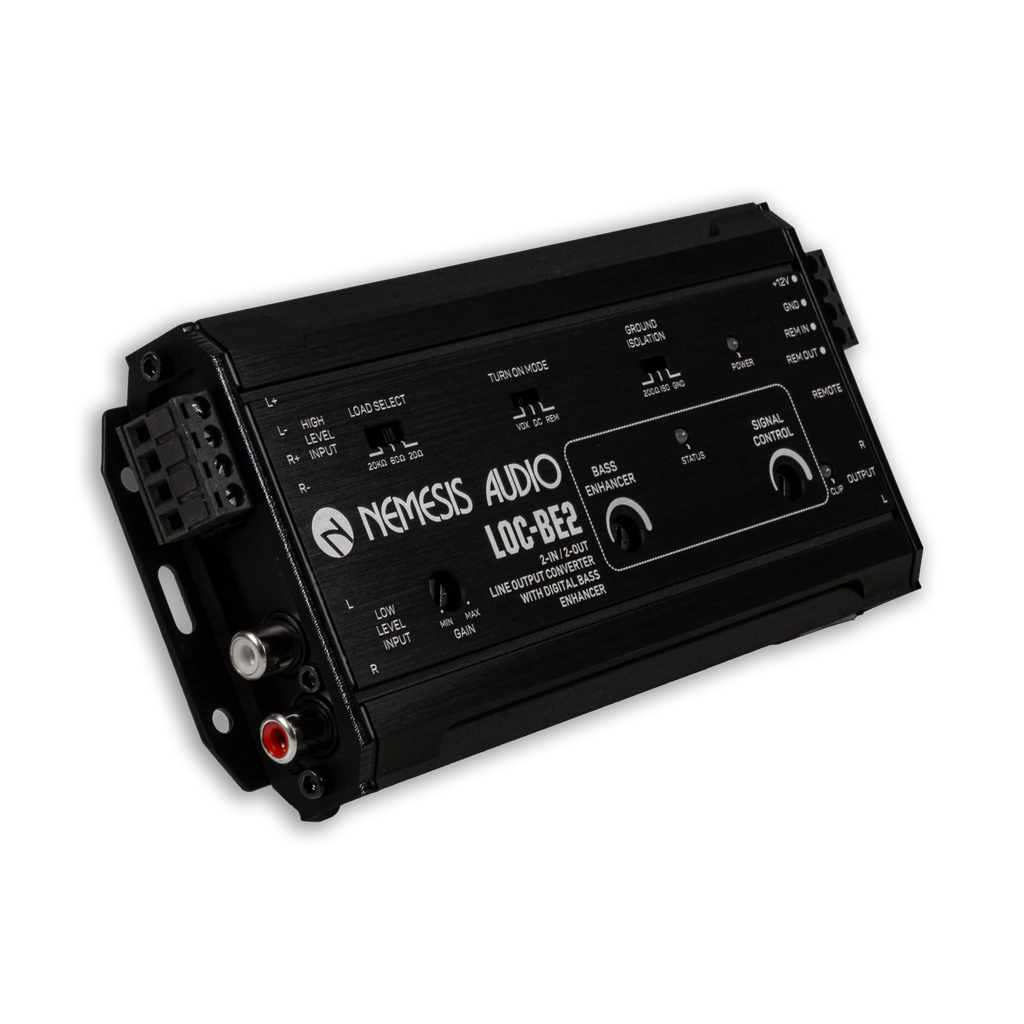

• Active 2-channel line output converter and line driver
• Designed to work with factory and aftermarket audio systems
• Speaker-level inputs handle up to 30V
• Low-level RCA inputs handle 150 mV - 2 Volts
• RCA outputs Provide up to 9.5 Volts of output
• Adjustable BOOST corrects for bass roll-off
• Auto turn-on via DC offset or Audio Detection
• Load selection switch (20, 60, or 20K ohms) to prevent factory stereo shut-down
• 12 Volt turn-on output for aftermarket amplifiers
• Selectable Ground Isolation switch to eliminate ground and alternator noise
• Molex terminals for speaker signal and power
• Wired remote bass level control included
• LED Clip indicator
• Total Harmonic Distortion: .01%
• Single to Nose: >105dB
• Frequency Response: 10-25,000 Hz
