Description
Specifications

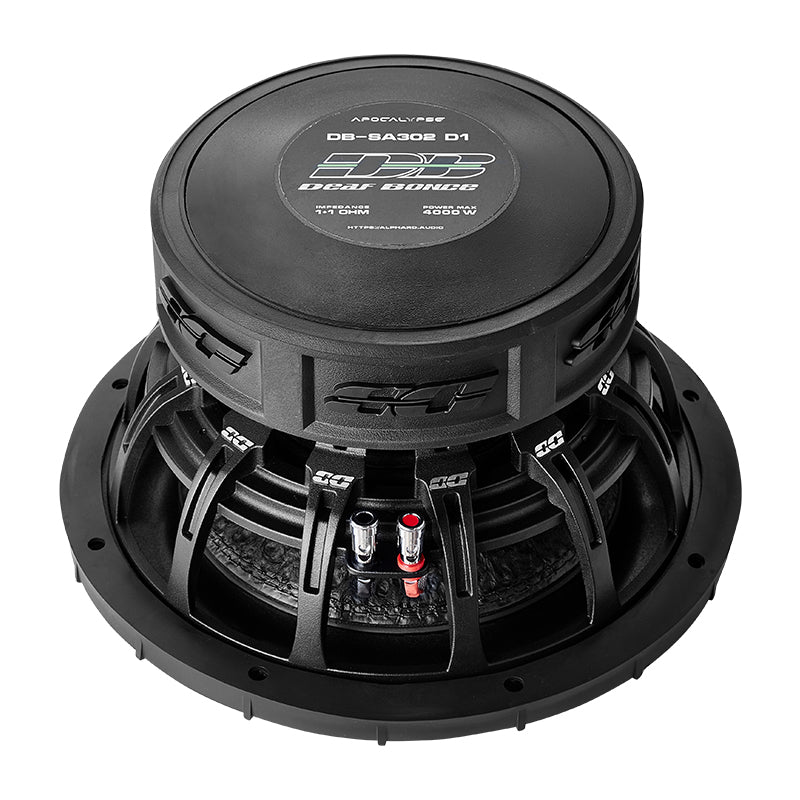

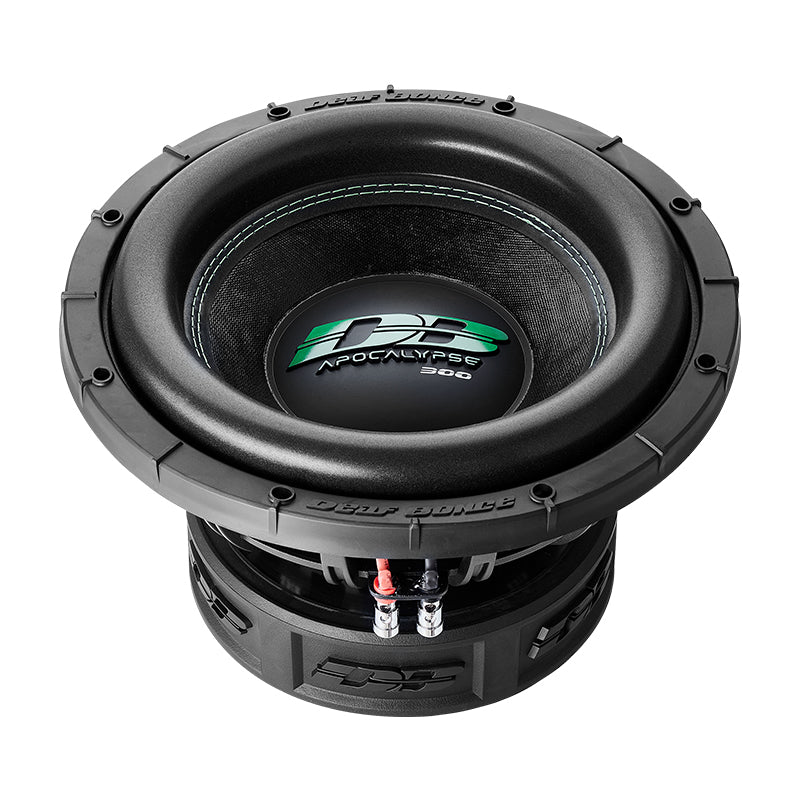

| Model | DB-SA302D1 / DB-SA302D2 |
| Type | Subwoofer |
| Size | 12 inch |
| Voice coil size | 3.00 inch |
| Cone | Paper |
| Magnet | Ferrite |
| Voice coil wire | CCAW |
| Surround | Foam |
| RMS Power | 2000 W |
| MAX Power | 4000 W |
| Frame | Alu |
| Impedance | 1+1 / 2+2 Ohm |
| SPL | 86.30 / 86.70 dB |
| Fs | 35.16 / 35.67 Hz |
| Qts | 0.30 / 0.34 |
| BL | 20.04 / 20.84 |
| Vas | 21.00 / 24.00 L |
| Xmeh | 36.00 / 36.00 mm |
| Xmax | 18.00 / 18.00 mm |
| Mounting depth | 7.07 inch (179.5 mm) |
| Cut-out dimension | 11.00 inch (279.3 mm) |
| Gross weight | 36.16 lb (16.40 kg) |
