Description
SPECIFICATIONS:
Total Watts (Peak): 1600 Watts
RMS Power @ 4 OHM: 650 Watts x 1
RMS Power @ 2 OHM: 1050 Watts x 1
RMS Power @ 1 OHM(12V): 1430 Watts x 1
RMS Power @ 1 OHM(14.4V): 1600 Watts x 1
AUDIO SPECIFICATIONS:
Frequency Response: 15Hz ~ 20KHz
Signal To Noise Ratio: 100 dB
Damping Factor: >210
Total Harmonic Distortion (THD): 1%
Low Pass Filter: 80Hz ~ 20KHz
High Pass Filter: 15Hz ~ 1000Hz
Crossover (dB/Oct): 12
Bass Level Adjustment: 0 ~ 12dB
Bass Frequency Adjustment: 35Hz ~ 70Hz
Input Sensitvity: 0.2 ~ 6V
FEATURES:
Amplifier Class: Digital (D)
Amplifier Type: Monoblock
Number Of Channels: 1
Minimum Impedance: 1 Ohm
Led Indicator: Power / Clip

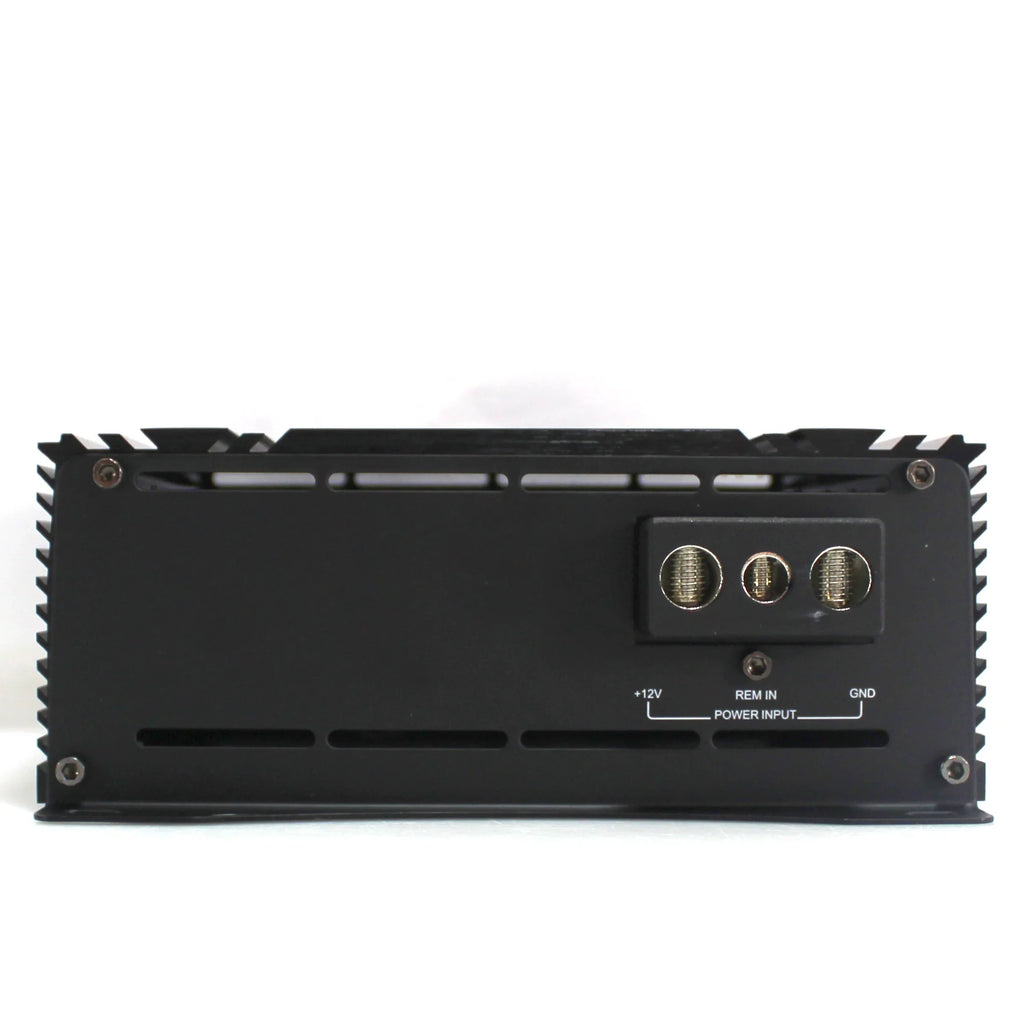

Input Terminal: 4AWG / 21.2mm
Output Terminal: 8AWG / 8.37mm
Working Voltage: 9 ~ 15V
Body Color: Black
DIMENSIONS:
Overall Length: 5.7 (145mm)
Overall Width: 6.3 (160mm)
Overall Height: 2.5 (63.5mm)
Single Unit Weight: 2.91Lbs
